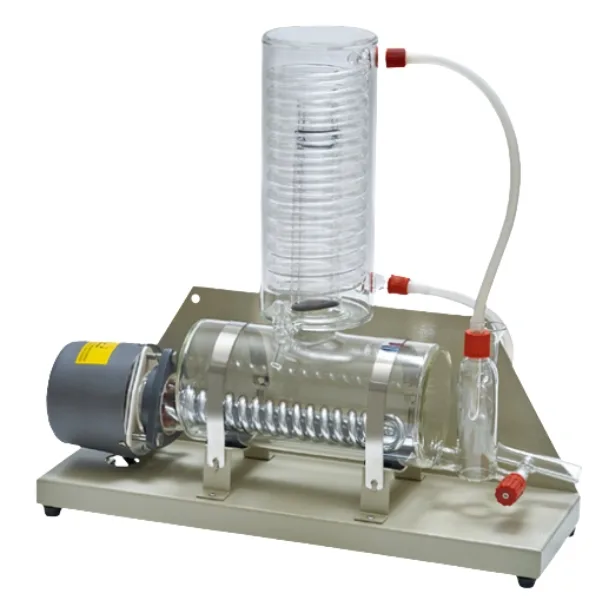

The Distillation Unit LS-21007 is a high-performance laboratory water distillation system designed to produce high-quality pyrogen-free distilled water for laboratory, research, medical, and industrial applications. Built with a thick-wall heat resistant borosilicate glass boiler and a durable stainless steel heater, this unit ensures reliable operation, long service life, and excellent distillation efficiency.
Its high-efficiency coil condenser produces low-temperature distilled water with conductivity levels of 3 to 4 µS/cm, ensuring high purity output suitable for scientific and laboratory use. The compact design supports both bench-top and wall mounting installations, making it ideal for laboratories with limited workspace.
The system includes screw-thread connectors for safe and easy hose installation or removal. A built-in constant level device with Vendura-Nova valve allows easy drainage and descaling without dismantling the unit, reducing maintenance time. For added protection, the integrated safety thermostat automatically protects the heater during water supply interruption and resets once the water supply is restored.
Designed for consistent performance and easy operation, the LS-21007 Distillation Unit is an ideal choice for laboratories requiring continuous supply of purified distilled water.
Key Features
- Produces up to 4 litres/hour distilled water
- Thick-wall borosilicate glass boiler for durability
- Stainless steel heater for efficient heating
- High-efficiency coil condenser for low-temperature distillate
- Produces pyrogen-free distilled water
- Compact design suitable for bench or wall mounting
- Screw-thread hose connectors for secure fitting
- Built-in constant level device with Vendura-Nova valve
- Easy descaling without dismantling
- Safety thermostat protection against water supply failure
- Automatic reset after water supply restoration
- Suitable for laboratory and research applications
Specifications
| Parameter | Details |
| Model | LS-21007 |
| Output Capacity | 4 Litres/Hour |
| Distillate Quality | Pyrogen Free |
| pH Value | 5.0 – 6.5 |
| Conductivity | 3.0 – 4.0 µS/cm |
| Resistivity | 0.25 – 0.30 megOhm-cm |
| Distillate Temperature | 35°C – 50°C |
| Water Supply Requirement | 1 Litre/min |
| Minimum Water Pressure | 3 psi (0.2 × 10⁵ NM⁻²) |
| Power Supply | 220 / 240V |
| Frequency | 50 / 60 Hz |
| Phase | Single Phase |
| Fuse Rating | 13A |
| Dimensions (W × D × H) | 50 × 15 × 45 cm |
| Construction Material | Borosilicate Glass Boiler |
| Heater Material | Stainless Steel |
