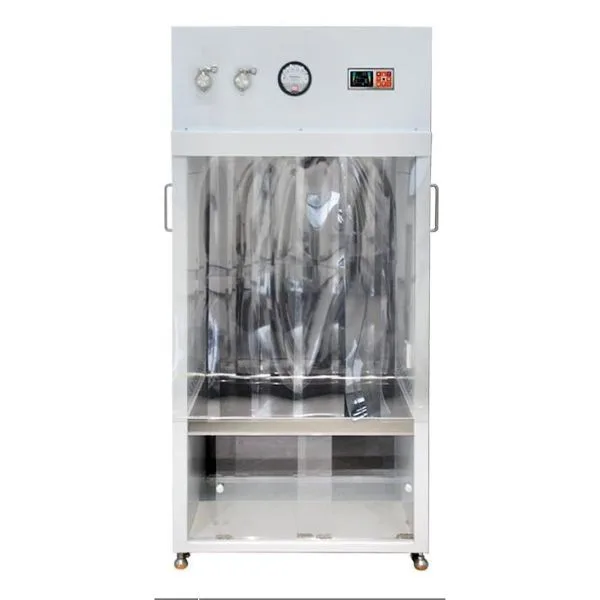

INS-CSV_1200 Clean Sampling Vehicle

The INS-CSV_1200 Clean Sampling Vehicle delivers a Class 100 clean workspace. Air passes through a primary filter, is compressed by a centrifugal fan into a static pressure box, and then filtered by a HEPA filter before being discharged, forming a uniform clean airflow. This airflow removes dust particles, creating a high-cleanliness working area.

Key Features:

• Movable glass panel for convenient, flexible use
• Adjustable air volume fan system with electrical remote control
• Uninterruptible power supply for uninterrupted operation
• Dust-free, fireproof high-density board framework

Key Specifications:

• Cleanliness level: Class 100 (Federal 209E)
• Colony count: ≤0.5 pieces/dish/hour (90 mm culture plate)
• Average wind speed: 0.26–0.45 m/s
• Noise: ≤62 dB (A)
• Vibration (half peak): ≤5 μm (x, y, z)
• Illuminance: ≥300 LX
• Power supply: AC single phase 220V/50Hz
• Maximum power consumption: 0.08 kW
• Weight: <3 kg
• Internal dimensions (W×D×H): 1030×635×930 mm
• External dimensions (W×D×H): 1185×690×1910 mm
• HEPA filter specifications: 1025×600×50×1
• LED/UV lamp: 30 W ×1

Remarks:
Flexible glass panel, remote fan control, uninterruptible power supply.
