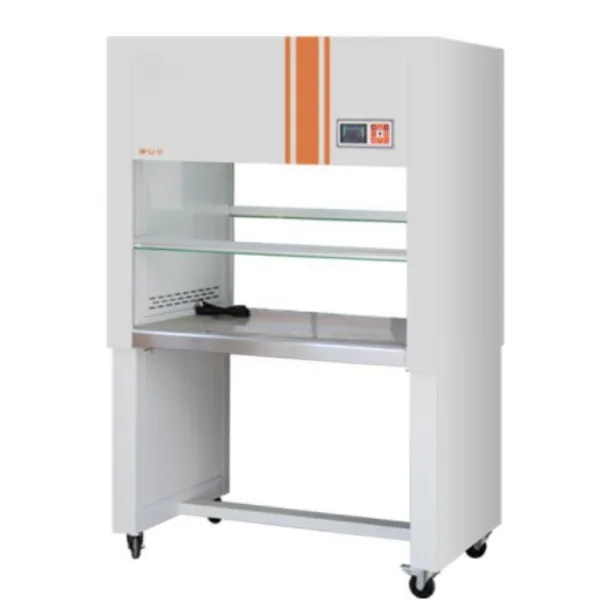

Laminar Flow Cabinet – INS-LF-1CU

The INS-LF-1CU Laminar Flow Cabinet delivers a Class 100 clean workspace. It features laminar airflow and HEPA filtration, providing contamination-free laboratory operation. Designed for single-person use, it operates on AC 220V / 50Hz (single phase).

Key Specifications:

• Cleanliness level: Class 100 (Federal 209E)
• Colony count: ≤0.5 pieces/dish/hour (90 mm culture plate)
• Average wind speed: 0.25–0.45 m/s
• Noise: ≤62 dB (A)
• Vibration (half peak): ≤0.5 μm (x, y, z direction)
• Illuminance: ≥300 LX
• Maximum power: 490 W
• Weight: 140 kg
• Inner dimensions (W×D×H): 1140×600×580 mm
• External dimensions (W×D×H): 1760×1760×580 mm
• Lamp specification: 12W fluorescent/UV
• Filter: High-efficiency filter, 50×1
• Configuration: Double-side, white control panel with fast/slow wind speed
• Applicable number of people: 1

Remarks:
White control panel with fast/slow wind speed options.
