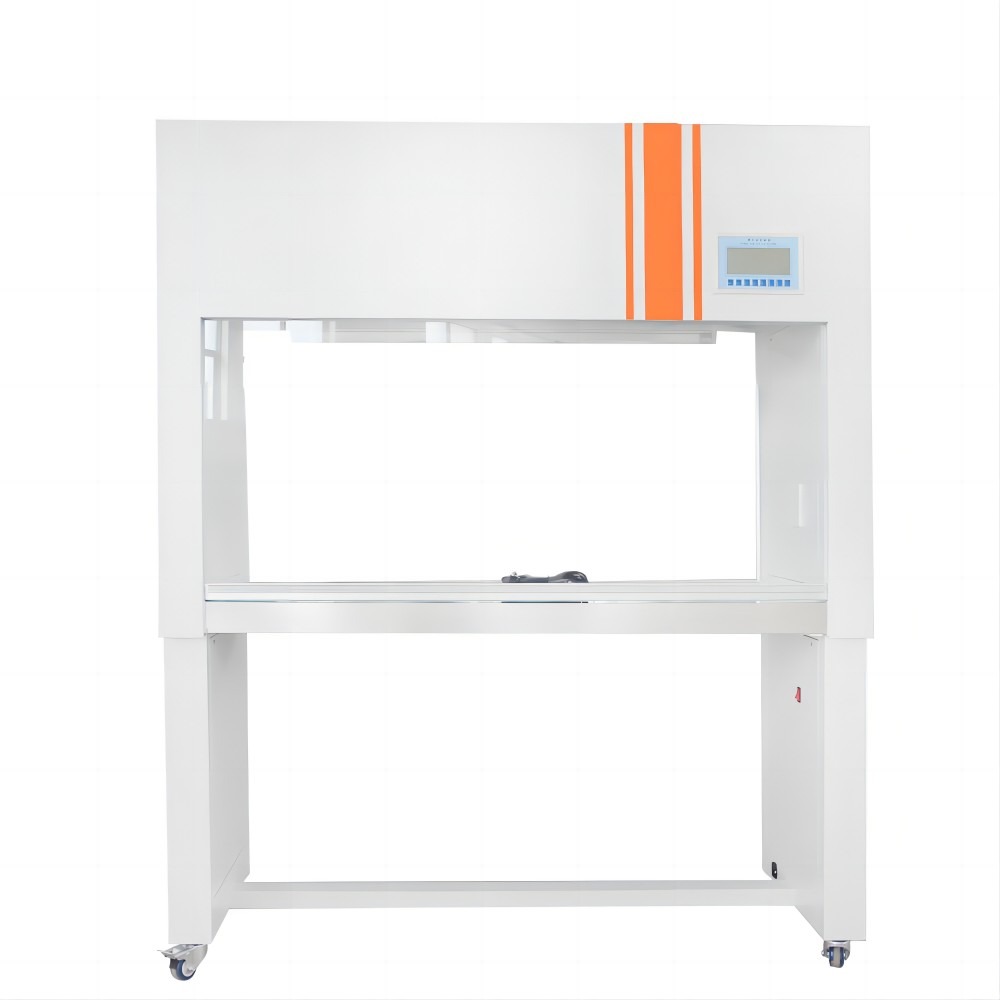

Laminar Flow Cabinet SW-CJ-2D

SW-CJ-series vertical air supply laminar flow cabinet

Product features

  1. Adopting arbitrary positioning sliding door system
  2. The shell is welded by cold-rolled plates, the surface is electrostatically sprayed, and the work surface is SUS304 brushed stainless steel, which is corrosion-resistant and easy to clean.
  3. The lighting and sterilization systems are interlocked safely, and there is a timing function of ultraviolet light
  4. Digital display LCD control interface, more user-friendly design
  5. The vertical quasi-closed table top and the formation of a downward flow air curtain in the operation room can effectively prevent the input of external air and the operation area is clean
  6. Equipped with HEPA high-efficiency air filter, with primary filter for preliminary filtration, which can effectively extend the service life of the high-efficiency filter
Model SW-CJ-2D
Cleaning level Class 100@≥0.5μM (US Federal 209E)
Several colonies ≤0.5pcs/dish·hour (Φ90mm culture plate)
The average wind speed 0.25~0.45m/s
Noise ≤62dB(A)
Vibration half peak ≤0.5μM (x, y, z direction)
Illumination ≥300LX
Power supply AC single phase 220V/50Hz
Work area size (W×D×H) 1150×550×580mm
Overall dimensions (W×D×H) 1310×590×1600mm
Applicable number Double person single side
High efficiency filter specification and quantity 1135*455*50*1
Specification and quantity of fluorescent lamp/ultraviolet lamp 12W×①/30W×①
